Loxit 8401

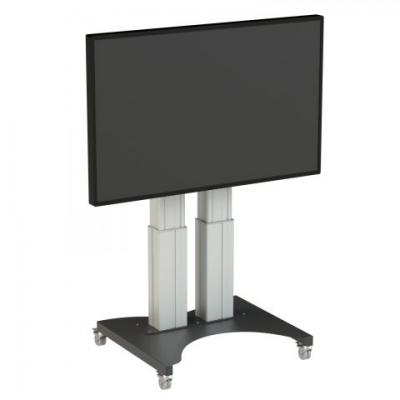

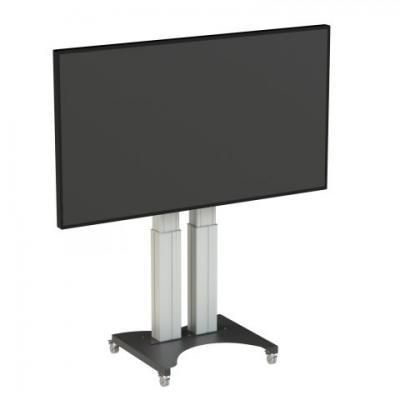

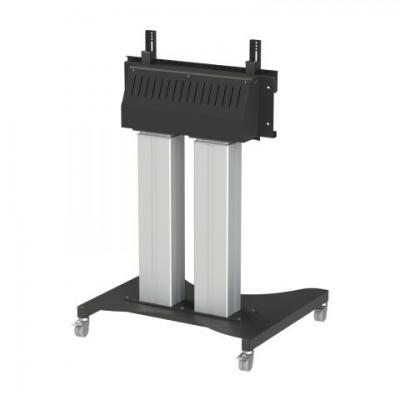

Dual column electric mobile screen lift for lifting very large screens into a position where they can be easily viewed.

Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 105″.

Max screen weight 170kg.

Smooth electrical operation raises and lowers the screen by 600mm, allowing all users access to the display.

Suits VESA patterns up to 800mm wide x 600mm high.

Height from floor to centre of screen:
Lowered 1295mm
Raised 1895mm

Includes integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.

Includes 3m hi-vis mains input cable for additional safety.

Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.

Cables are tidied away within the mount head for a professional installation.

Ready assembled – simply screw the universal mount brackets onto the screen and hang on the trolley. Saves installation time and money.

Optional rubber bumper for use in nurseries and for base protection.

For additional safety when being used in vulnerable environments such as with young children in nurseries, those in SEN environments or wheelchair users, add Hi-Lo® Anti-Crush Bar for Flat Screen 1.00m code 8973. The discrete pressure sensitive bar is adhered to the underside of the screen and cuts out power to the motor at the slightest contact.

5 year on site warranty. Mainland UK excludes Scottish Highlands. Please contact us for further details.

Features
Very stable and durable twin column electric trolley based lift for LED/LCD screens and displays.

Max screen weight is a huge 170kg and max screen size is 105″ diagonal.

Smooth, quiet electrical operation raises and lowers the screen by 600mm, allowing all users access to the display.

Height from floor to centre of screen 1295 – 1895mm.

Includes integrated 4 way power strip and 2 spare IEC outlets to power the screen and peripherals.

Just one cable to the mains socket.

Includes 3m hi-vis mains input cable for additional safety. Country specific cables available.

Ready assembled – simply screw the universal mount brackets onto the screen and hang on the trolley – saves installation time and therefore money.

Optional rubber bumper for use in nurseries and for base protection.

Technical
600mm electric height adjustment.

Height from floor to centre of screen:
Lowered 1245mm
Raised 1845mm

Max screen size 95″

Max screen weight 150kg

Includes integrated 4 way power strip.

Includes 3m mains input cable.

Application
A mobile electric height adjustable display mount perfect for touch screens, digital signage and video conferencing applications where the screens are shared between user groups and between people of differing heights.

The mobile version allows the screen to shared between user groups and positioned out of the way when not in use.

The Hi-Lo Mono 600 Electric Screen Mount is a very high capacity mount, stylish and suitable for any environment. Capable of effortlessly lifting screens up to 170 kg and 105″, the 600mm range of electric height adjustment makes it especially suitable for lifting the largest screens high enough to be easily viewed in presentation situations.

High enough to raise the bottom of the screen high enough for everyone to see, the maximum height to the centre of the screen is approximately (depending on location of screen mount holes) 1895mm from the floor, whilst in the lowered position it is 1295mm.

The smooth and effortless electric height adjustment allows users of all age groups and heights to benefit from screen technology without compromise.

The twin column design provides great stability and is stylish, suitable for any environment.
