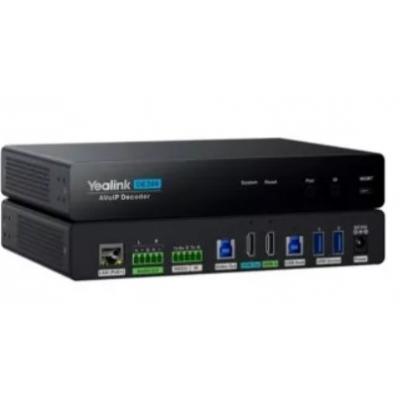

Yealink DE300

Yealink DE300 AVoIP Decoder

The Yealink DE300 AV over IP decode, is prepared for professional AV scenarios, high-quality audio and video reference standard data transfer via Ethernet is 1 GB/s.
It uses low-compression decoding technology in lossless 4K/60Hz format with 4:4:4 color sampling and sub-frame latency.

Yealink DE300 receives audio video signals from the network, has HDMI input and output, USB In/out, RS232 and IR ports for display control and multiple interfaces for USB or BYOD.

Users can use multiple encoders and decoders to create a networked audio and video matrix. By monitoring the access status of audio and video sources in real-time from the encoder side, the system will automatically and dynamically adjust the routing configuration between the encoder and the decoder for output to connected audio and video devices.

Gigabit Ethernet
Yealink AVoIP series products are suitable for gigabit networks.

Users simply need to connect the devices to an appropriate Gigabit network environment to ensure interoperability between the devices, which significantly increases the scalability of the system and also allows for the transfer of information over long distances.

HDCP 2.3 support
The Yealink DE300 AVoIP Series is fully HDCP 2.3 compliant for transmitting HDCP encrypted UHD content.

Simple, plug-and-play deployment
Using network cables, directly connect the network ports of the encoder and set-top box, and the devices will automatically perform "plug and play" identification and pairing to transfer audio and video signals between devices.

Yealink DE300 Specifications:
• Decoder
• Up to 4K resolution at 60 Hz, 4:4:4 color subsampling, 8-bit color depth
• Multi-channel audio
• Very low latency: less than one frame
• HDCP 2.3 copy protection
• HDR (High Dynamic Range) support.

Video:
• Inputs for HDMI and LAN signals
• Capture output via HDMI or USB
• Video signal support up to 4K@60Hz
• Supports color depth up to 4:4:4
• 8-bit color depth
• HDCP 2.3 copy protection
• Dante video protocol support (additional license required for activation)

Audio:
• Inputs for HDMI and LAN signals
• LPCM (Multichannel Audio)
• Stereo analog audio output (two channels)
• Analog audio output supports balanced and unbalanced modes
• Supports AES67 and Dante audio protocols (additional license required for activation)

Connection:
• Supports Multicast, DHCP, IPv4, HTTPS protocols
• Supports transmission distances of up to 100 m using Cat5e or higher cables
• USB 2.0 for controlling from a computer, accessing USB host devices, and connecting USB devices
• RS232: Bi-directional control, supports speeds up to 115200 bps
• IR: One-way control via infrared port

EAN # : 6938818320222
