Radio Design Labs D-RLC10K
|
Qty. | Login to see stock. | Login to buy |
D-RLC10K Remote Level Control - 0 to 10 kΩ
The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10 kΩ potentiometer for setting the control voltage.
The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

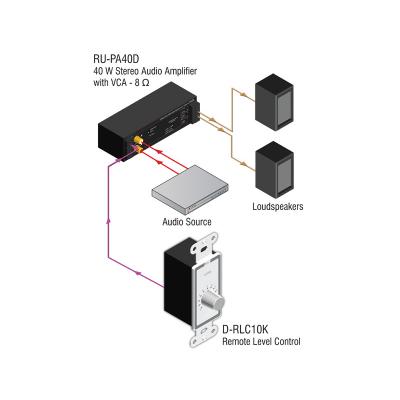

Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.
All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.
• Remote Level Control Panel
• Single-Turn Rotary Control
• Single Control Location
• Direct Connection to RDL VCA Modules
• Discrete Wiring Connections on Detachable Terminal Block
• Available in Standard RDL White, Stainless or Black
