Panasonic PAN-AW-UB10E

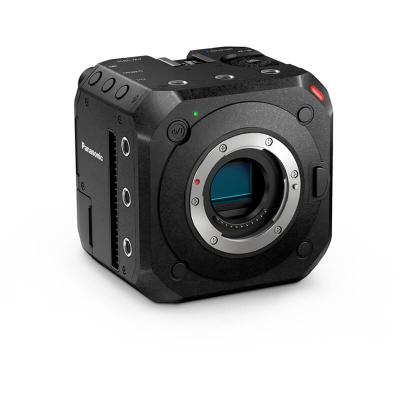

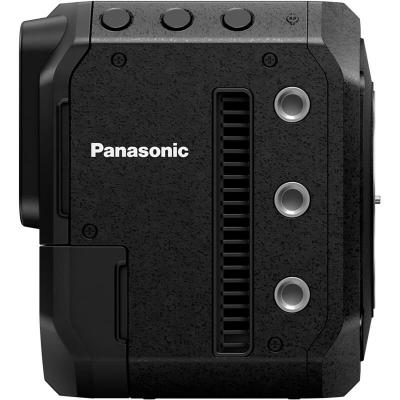

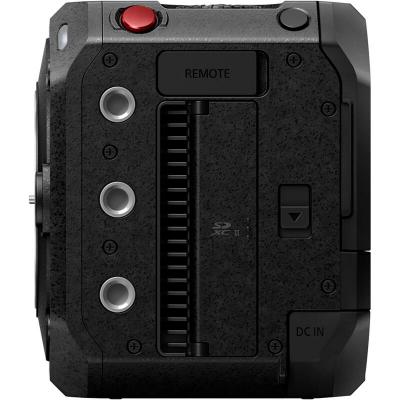

AW-UB10E 4K Multipurpose Box Camera

Box-style camera AW-UB10 is based on LUMIX digital interchangeable lens camera technology and equipped with a host of new functions designed to streamline video production workflows. Delivering stunning, vivid colour reproduction, the UB50 uses a 24.2-million pixel full-frame MOS sensor and supports IP-based transmission standards such as NDI® HX2.

The UB10 is the 4K multi-purpose camera supporting all common IP control protocols used in Panasonic’s remote camera systems. The box-style 4K multi-purpose cameras can support rich, versatile image capture and are incredibly easy to operate in the field, enabling more creative video production.

The UB10 features a 10.2-million pixel full-frame sensor. It feature real-time recognition autofocus technology, enabling the cameras to automatically identify the subject and keep them in focus.

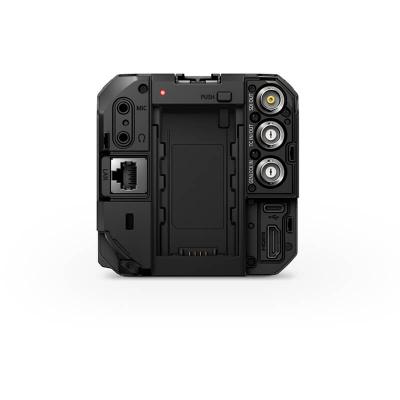

UB10 camera features the 3G-SDI OUT, HDMI Type A, LAN terminal, TC IN/OUT, GENLOCK IN, and USB Type-C input/output interfaces.

The LAN terminal is Power of Ethernet (PoE+) compatible, with video transmission, control, and power delivered via a single cable – further reducing complexity and clutter.

The camera is ideal for a variety of applications from corporate to broadcasting and live entertainment.

• 4K Multipurpose Box Camera
• 10.2M MOS sensor for capturing multiple subjects in a single frame (AW-UB10)
• Wide dynamic range with V-Log ( AW-UB10: 13 stops)
• Compact design (height, width & depth each less than 10cm, excluding lens)
• Lens Mount: Micro four-thirds mount
• Unified IP control protocol compatible with Panasonic PTZ camera systems
• Compatible with Media Production Suite for multi-camera setups with PTZ cameras
• Planned support for IP transmission standards including NDI® HX2, RTMPS, and SRT
• Camera Type: Box Style
• Image Sensor: Four-thirds MOS sensor (Approx. 11.90 megapixels, square pixel color MOSsolid-state image sensor, primary color filter)
• Recording Media: SD Memory Card, SDHC Memory Card,* and SDXC Memory Card* for dual-slot recording *Slots 1 and 2 compatible with UHS-I/UHS-II UHS Speed Class 3 and UHS-II Video Speed Class 90
• Video Format: MP4: H.264/MPEG-4 AVC and H.265/HEVC MOV: H.264/MPEG-4 AVC and H.265/HEVC

EAN # : 5025232976256
