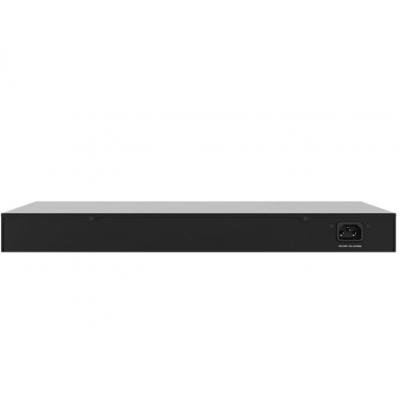

Luxul SW-505-24P-F-U

26-Port Front Facing Gigabit (24 PoE+) L2/3 Managed Switch (UK)

The SW-505-24P-F includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 370W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.

Features:
• Refreshed, simplified user interface
• Supports inbound (ingress) ACL filtering
• Layer 2/Layer 3 capabilities (static routing included)
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 52Gbps switching capacity
• 802.1Q VLAN and QoS support including DCSP
• Dante and AES67 compatibility
• AV-over-IP compatible
• PoE Monitoring: auto-recovery and power scheduling
• 24 PoE+ powered capable ports (IEEE 802.3at)
• 370 Watt total PoE budget
• Standard 19-inch rack mount
• 2 RJ45/SFP Combo Ports
• Dynamic PoE allocation
• Front-facing ports
• Low noise, variable speed fans
• AV templates for easier, faster deployment and network control available with firmware update 1.00.429
• Three Year Limited Warranty
