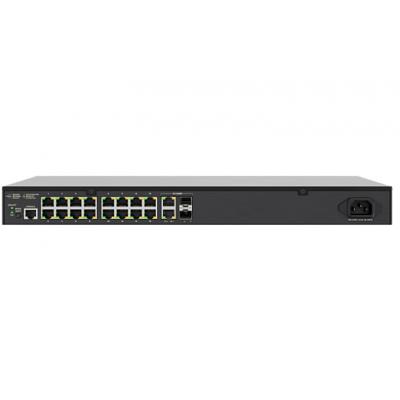

Luxul SW-505-16P-R-E

18-Port Rear Facing Gigabit (16 PoE+) L2/3 Managed Switch

The SW-505-16P-R is a 16 port PoE+ rear-facing single-space rackmount 1Gb switch with 2RJ45/SFP 1Gb ports (aggregable up to 2Gbps) with a total PoE power budget of 185W. Each of the SFP ports can be used alone or aggregated together up to 2Gbps. This L2/L3 switch with 36Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ACL ingress filtering.

Features:
• Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
• Supports inbound (ingress) ACL filtering
• Layer 2/Layer 3 capabilities (static routing included)
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 802.1Q VLAN and QoS support including DCSP
• Dante and AES67 compatibility
• AV-over-IP compatible
• PoE Self-Healing with auto-recovery and power scheduling
• 16 PoE+ powered capable ports
• 185 Watt total PoE budget
• Rear-facing ports
• Low noise, variable speed fans
• 2 RJ45/SFP Combo Ports
• Dynamic PoE allocation
• Rack Mountable
• AV templates for easier, faster deployment and network control available with firmware update 1.00.429
• Three Year Limited Warranty
