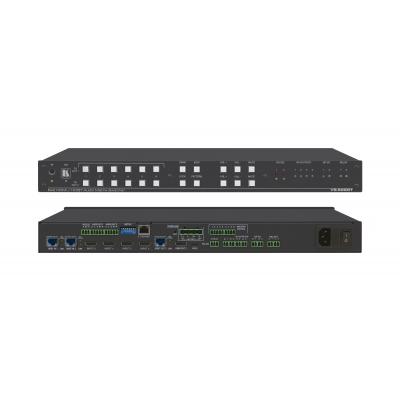

Kramer Electronics VS-622DT
|
Qty. | Login to see stock. | Login to buy |
All–in–One Presentation System with 6x2 4K60 4:2:0 HDMI/HDBaseT
VS−622DT is an all−in−one 4K@60Hz (4:2:0) presentation system with 6x2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.
VS−622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS−232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.
Features:
• Resolutions up to 4K@60Hz (4:2:0)
• Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
• Control Gateway with RS-232, IR, GPI/O, and Relay Ports
• Simple and Powerful Maestro 1.5 Room Automation
• Power Amplifier - 1x120W @70V/100V & 2x60W @8Ω
• Provides Power (PoE) on All HDBaseT Ports to Compatible Devices
EAN # : 7291063084189
