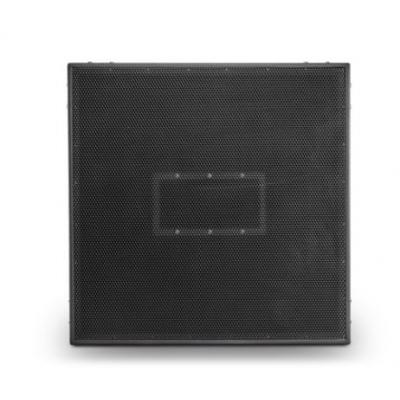

JBL PRO PD764i
|
Qty. | Login to see stock. | Login to buy |
Very High Output Mid-High Loudspeaker System
The PD764i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i may be used in clusters with other PD family modules or singly as part of a distributed system.
• 60° by 40° Coverage Pattern-symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
• IFST Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
• Dual 8 in horn loaded cone mid frequency drivers provide 6 dB greater output than traditional designs.
• Pattern control maintained to below 400 Hz.

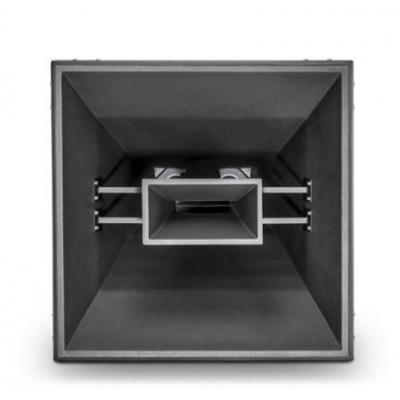

• Co-axial mid / high-frequency module layout improves mid frequency arrayability and minimizes size.
• Integrated rigging system simplifies array design and construction.
