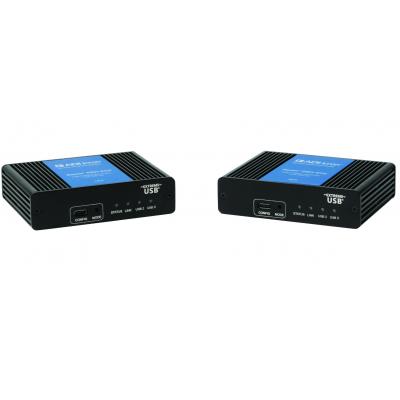

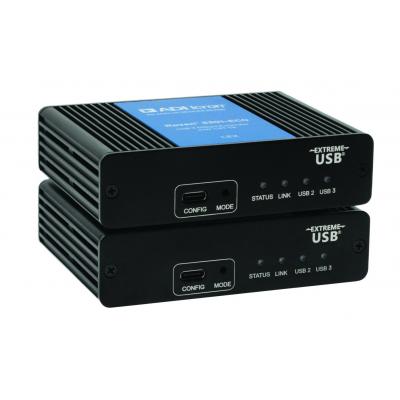

Raven 3301-ECO System
The Raven 3301-ECO is a streamlined, energy-efficient solution for extending USB 3.0 connections over long distances. Designed with simplicity in mind, it features a single USB-C port, supports CAT 5e or better cabling, and includes no built-in USB hubs, making it ideal for remote USB 3.0 peripherals.
This extender supports all USB transaction types, including isochronous transfers, and is fully backward compatible with USB 2.0 and earlier versions. With DC power supplied at the remote end, it enables point-to-point extension up to 100 meters, delivering reliable performance for professional AV and industrial applications.
Features:
• Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps
• Extends USB 3 up to 100m over CAT 5e or better cabling
• Power the LEX (Local Extender) at the host
• The REX (remote extender) can power a single USB device up to 15W (5V 3A)
• Supports All USB Transaction types (Control, Bulk, Interrupt, ISO)
• No USB Hub tiers consumed (hubless)
