Cloud Electronics BT-2FW

Remote Wall-Mounting Input Module WHITE

BT-2F is a wall-mounting remote input module for use with Cloud products fitted with an RJ45 Facility Port. The BT-2 enables compatible portable devices such as laptops, tablets and smartphones to stream audio wirelessly into the installed zone.

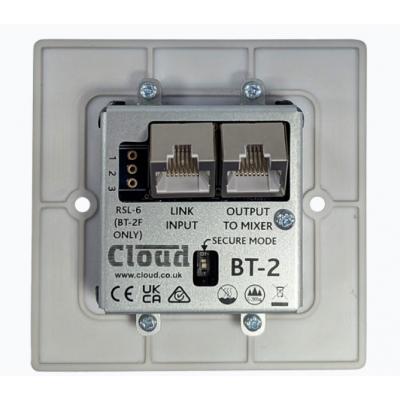

The BT-2 is exceptionally simple to install; the rear RJ45 connector is wired to one of the host unit’s Facility Ports with a single screened Cat 5 cable using standard shielded RJ45 connectors at each end. The Cat 5 cable carries DC power as well as balanced audio.

The BT-2 will route a mono sum (L+R) of the streamed audio to the host unit and is compatible with the following Cloud products which are fitted with RJ45 Facility Ports:

Z4MK4 & Z8MK4 Zone Mixers
46-120MK2 & 46-240 Zone Mixing Amplifiers
MA40F, MA40T and MA40E Mini Amplifiers
MA80FT and MA80E Mini Amplifiers
46-80 and 46-80T Zone Mixing Amplifiers
MPA120MK2 & MPA240MK2
24-120 & 24-240 Zone Mixing Amplifiers
If you do not wish the BT-2F to function as a single-zone priority input, you can use an FPA-1 adaptor to configure it as a global line input. This provides additional flexibility, allowing it to serve as a priority line input across multiple zones, depending on the headend functionality. For products not equipped with a Facility Port connector, an FPA-1 adaptor can be used per zone.
