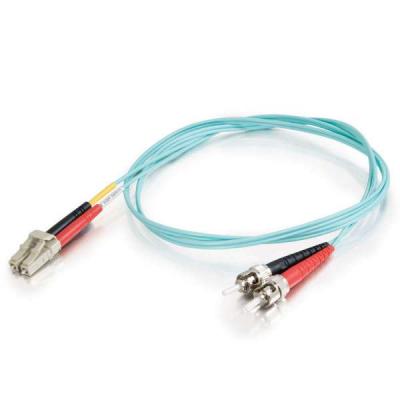

3m Aqua LC-ST 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH)
LSZH Rated Fibre Optic Cable Designed for 10GBase-SR and 10GBase-LRM Ports and Equipment.
• Product #: 85542.
• Connector 1: (1) LC Male.
• Connector 2: (1) ST Male.
Product Description
This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 Gigabit Ethernet applications.
The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.
Product Specifications
• Colour: Aqua.
• Length: 3.00 Meter.
• Jacket Rating: Standard Non-Rated.
• UPC: 757120855422.
• Warranty: Lifetime.
• Vendor: C2G.
• Weight: 0.043 KG.

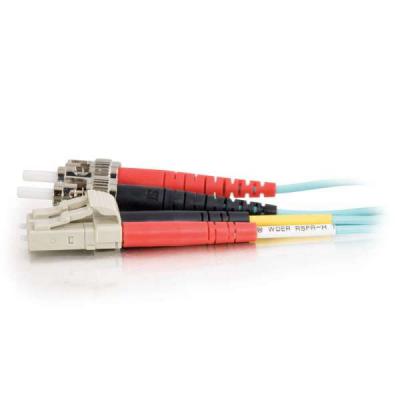

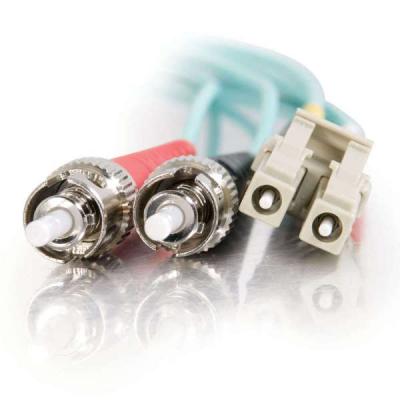

Connectors
• LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip).
• ST Connector Dimensions: 9.8mm Height x 19.6mm Width x 59mm Depth.
Cable
• Optical Multimode 3 (OM3) fibre supporting 2000 MHz.km EMB at 850 nm.
• 10 Gigabit transfers up to 300 metres using 850 nm VCSEL source
• Maximum Connector Loss: 0.50 dB
• Typical Connector Loss: 0.30 dB
• Typical Return Loss: -25 dB
• Buffer Material: PVC
• Buffer OD: 900 µm
• Jacket Material: LSZH PVC (OFNR riser-rated)
• Jacket OD: 1.8 mm
• Installation Tensile Load: 100 N (445 lbs)
• Long-Term Tensile Load: 50 N (222 lbs)
• Maximum Tensile Load: 100 N/cm
• Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
• Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
• Crush Resistance: 750 N/cm
• Impact Resistance: 1,000 cycles
• Flex Resistance: 5,000 cycles
• Attenuation at 1300 nm: 1.0 dB/km
• Attenuation at 850 nm: 3.5 dB/km
• Operating Temperature: -20°C to +70°C
Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
