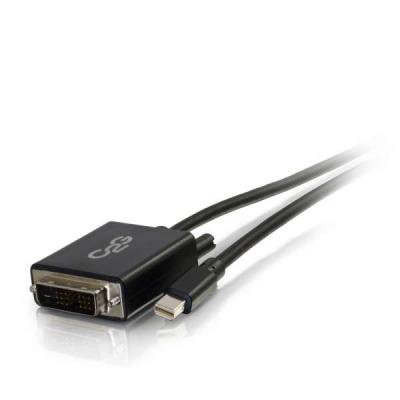

2m Mini DisplayPort Male to Single Link DVI-D Male Adapter Cable, Black
Connect the Mini DisplayPort or Thunderbolt™ output of a computer to the DVI input of a computer monitor
• Product #: 84335
• Connector 1: (1) Mini DisplayPort Male
• Connector 2: (1) DVI-D Single Link Male
• Colour: Black
• Length: 2m
Product Description
This adapter cable is an ideal solution for connecting the Mini DisplayPort or Thunderbolt™ output of a small laptop or tablet to a computer monitor which accepts a DVI-D input. This cable carries a digital video signal, supports up to a 1920x1200 resolution and meets the requirements of high performance applications.
Product Features
• Directly connect a Mini DisplayPort output to a Single Link DVI-D input.
• Carries a digital video signal.
• Supports up to a 1920x1200 resolution.
Product Specifications
• Colour: Black.
• Length: 2.00 Meter.
• Jacket Rating: Standard Non-Rated.
• UPC: 757120843351.
• Warranty: Lifetime.
• Vendor: C2G.
• Weight: 0.125 KG.
Electrical Specification
• Voltage Rating: 30v.
• Conductor Resistance: @ 20°C max.
• Insulation Resistance: 10MΩ/km.
• Time Delay: 5.2ns/m (max).
• Attenuation: 5.02dB@100-450MHz, 7.69dB@1GHz, 12.595dB@2GHz, 17.495dB@3GHz, 22.395dB@4GHz, 27.295dB@5GHz,
32.195dB@6GHz, 37.095dB@7GHz.
Physical Specification
• Operating Temperature: 0°C to 50°C.
• Storage Temperature: -25°C to 70°C.
• Approvals: CE.
• Warranty: Lifetime.
Conductor (2 Conductor, 5 Pair)
• Conductor: 32AWG (7/0.08TC).
• Insulation: FM-PE, ID:0.63±0.05mm.
• Colour: White/Brown, White/Red, White/Orange, White/Green, White/Blue.
• Drain: 32AWG (7/0.08TC).
• Shield: Aluminium Wrap, Coverage—100%.
Conductor (5 Conductors)
• Conductor: 32AWG (7/0.08TC).
• Insulation: HD-PE, ID:0.5±0.05mm.
• Colour: Red/Orange/Yellow/Green/ White.
Overall Cable
• Jacket: PVC
• Shield: Aluminium Foil—Coverage 100%, Braid—16/9/0.12
• Drain: 2:30AWG (7/0.08 BC)
• Outside Diameter: 5.2±0.2
