C2G - LegrandAV CG54403

Mfr. Part #: CG54403 Our Part #: C2G54403
Your Price:  N/A
Qty. Login to see stock. Login to buy

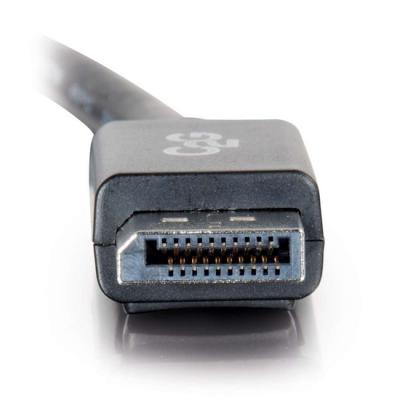

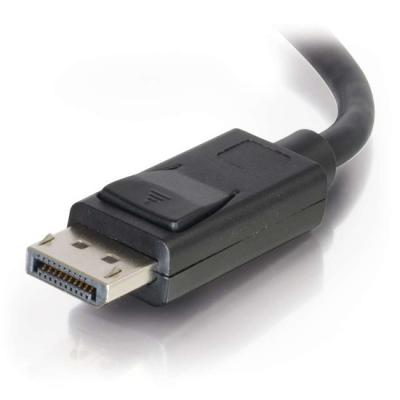

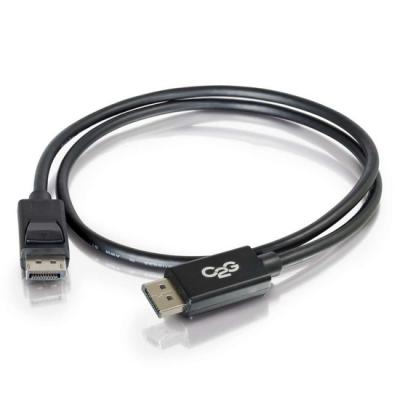

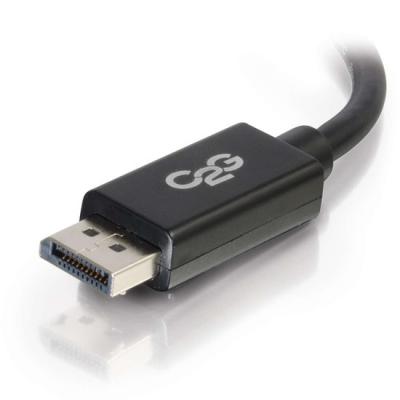

15ft DisplayPort™ Cable with Latches 8K UHD M/M - Black

This cable is an ideal solution for connecting the DisplayPort output of a laptop to a computer monitor which accepts a DisplayPort input. This cable carries a digital audio/video signal and the connectors feature latches which secure the cable in the port. Support of a High Bit Rate (HBR) bandwidth means that this cable can carry up to a 8K UHD (7680 x 4320) resolution. This cable meets the requirements of high performance applications.

Features and Benefits
• Directly connect a DisplayPort output to a DisplayPort input
• Carries a digital audio/video signal
• Supports a High Bit Rate (HBR) bandwidth and resolutions up to a 8K UHD (7680 x 4320)

Electrical Specifications
• Voltage Rating: 30v
• Conductor Resistance: @ 20°C max
• Insulation Resistance: 10M/km
• Time Delay: 5.2ns/m (max)

Physical Specifications
• Minimum Bend Radius: 73mm
• Approvals: CE
• Jacket: PVC
• Shield: AL-Foil Wrap, Braid, 85% Min Coverage
• Drain: 2:30AWG (7/0.10 BC)
• OD: 6.0±0.15

Conductor (5 Pair)
• Conductor: 32AWG (7/0.08TC)
• Insulation: FM-PE, ID:0.62±0.05mm
• Colour: White/Black, White/Brown, White/Red, White/Green, White/Blue
• Drain: 1:32AWG (7/0.08TC)
• Shield: AL-Foil Wrap, Transparent Wrap

Conductor (5 Conductors)
• Conductor: 32AWG (7/0.08TC)
• Insulation: PP, ID:ø0.5±0.05mm
• Colour: Red, Blue, Purple, White, Grey

Features
Cable TypeDisplayPort 8K Male to Male Cables
Length4.6m
ColourBlack
