Bosch DCNM-IDESKVID

Bosch DCNM-IDESKVID

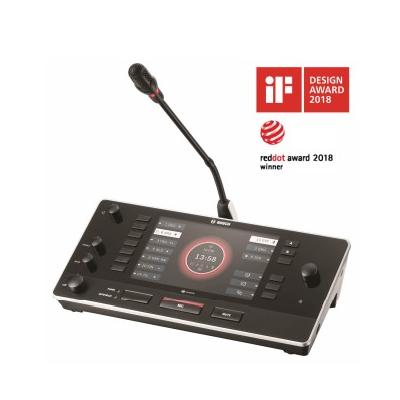

The DCNM-IDESKVID is an interpreter desk with a simplified, intuitive and ergonomic design and an HDMI video output to connect a 3rd party video screen. Clear positioning of the controls allows operation without mistakes. The interpreter desk provides only relevant information, a single glance is sufficient for the entire interpreting process. It fully complies with ISO 20109.

FUNCTIONS

• Up to ten desks per booth
• Hot plug and play
• Automatic external headset microphone selection
• Hearing protection for predefined headphones and headsets
• Tactile feedback for all controls
• Audible feedback and pimples for visually impaired users
• High contrast 7 inch display
• Language and system configuration from the interpreter desk’s configuration menu

Controls and indicators

• Headphone rotary volume control
• Headphone rotary bass and treble tone controls
• Loudspeaker rotary volume control
• Floor / auto-relay selection button and LED indicators
• Microphone button with red on-air and green “booth not in use” LED indicators
• Mute button
• Red on-air LED at the rear

Display section

• 7 relay language preset buttons, with indicators for selected preset and language: number, abbreviation and quality
• A, B (and C) language output buttons, with indicators for output: selection and state; language: number, abbreviation, engaged
• Language overview button, to show the quality of all available languages
• Video source selection button, to select either the participant speaking or the participant’s presentation to be shown on the external video screen
• Rotary control with integrated push button to change settings
• Real-time clock
• Loudspeaker selected language indicator
• Audible feedback active indicator (beeps)
• Microphone or external headset selection indicator

Connections

• Three 3.5 mm headphones / headset sockets TRRS (left side, right side and bottom side)
• Two RJ45 compatible connections for system communication and power. Loop-through cabling by using DICENTIS System cables or star cabling using standard Cat. 5e cables or better and PoE+ switches
• USB connector (for future use)
• Connector for pluggable microphone DCNM-MICS or DCNM-MICL (to be ordered separately)
• HDMI connector for external video screen using a properly shielded cable (HDMI high speed or better) to show the participant speaking or to display the participant’s presentation.

EAN # : 8717332939572
