BIAMP BMA 360D

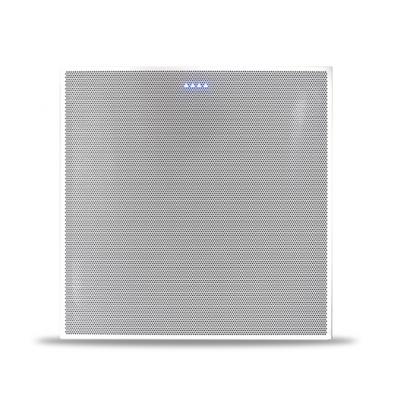

BMA360D Ceiling Tile Microphone

The BMA 360D is a next-generation ceiling tile microphone array designed to deliver natural, full-fidelity audio capture for modern conferencing and collaboration spaces.

The BMA 360D Ceiling Tile Microphone is engineered to provide exceptional audio performance and design flexibility in modern conferencing environments. Featuring ultra-wideband, frequency-invariant beamforming, it delivers consistent beam shape and uniform gain response across the entire voice frequency range, ensuring natural, intelligible speech for all participants.

The microphone array outputs pure, unprocessed beam audio over individual Dante channels, allowing system designers to maintain full control of signal processing within the DSP. A separate smart-switched output provides an optimized mix of active talkers, incorporating advanced audio enhancements such as echo cancellation, noise reduction, and level control for improved clarity and intelligibility.

With support for both preset and custom beam patterns, along with adaptive steering, the BMA 360D can be tailored to a wide variety of room layouts and use cases. This flexibility makes it well suited for conferencing spaces, training rooms, and environments requiring voice lift or camera tracking integration.

Designed to fit standard 24-inch by 24-inch ceiling grids, the BMA 360D enables clean, unobtrusive installation while simplifying deployment. By combining advanced beamforming performance with open Dante interoperability, it provides a scalable, future-ready solution for organizations seeking high-quality, flexible audio capture across their collaboration spaces.

Key Features:
• Deliver natural, full-fidelity voice capture — ultra-wideband, frequency-invariant beamforming maintains consistent sound quality across all beams and frequencies.
• Enable precise, flexible audio coverage — adaptive steering and configurable beam patterns support both standard room layouts and custom designs.
• Simplify integration with modern DSP systems — native Dante audio delivers individual beam outputs and a smart-switched mix for maximum design flexibility.
• Ensure optimal pickup of active talkers — smart-switched output dynamically selects the best combination of voices with integrated audio enhancement.
• Maintain consistent performance across the room — uniform gain response ensures balanced audio regardless of participant position.
• Support advanced room applications — ideal for conferencing, camera tracking, and voice lift scenarios.
• Streamline deployment in standard ceiling grids — designed to fit 24-inch by 24-inch ceiling tile openings.
• Enable scalable, future-ready system design — interoperates with any Dante-enabled DSP for flexible, vendor-agnostic deployments.
