Atlona Technologies AT-OME-EX-WP-KIT
|
Qty. | Login to see stock. | Login to buy |
Omega HDBaseT TX w/USB Wall Plate and Receiver Kit

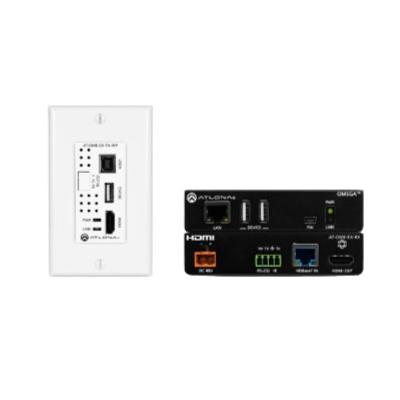

The Atlona AT-OME-EX-WP-KIT is a wall-plate HDBaseT extender kit designed for modern AV installations. It delivers HDMI video (up to 4K @ 60Hz with 4:2:0 chroma subsampling) plus embedded audio, USB 2.0, and control signals (RS-232) over a single category cable up to 330 ft (100 m). The transmitter fits into a US one-gang wallplate form-factor, with interchangeable black and white trims for discreet installation, while the receiver remotely powers the transmitter via HDBaseT, eliminating the need for local AC at the wall. It’s HDCP 2.2 compliant and built for integration in conference rooms, classrooms and interactive-display setups where USB peripherals, video sources and displays must be linked across distance.
• HDBaseTTM extender kit for HDMI® video, power, control, and USB
• USB 2.0 interfacing and extension up to 330 feet (100 meters)
• US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
• 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
• HDCP 2.2 compliant
• Transmitter powered by receiver over HDBaseT
• Also available: AT-OME-EX-WP-KIT-LT (70 meter extension)
