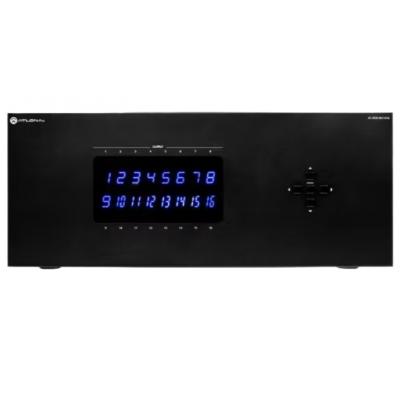

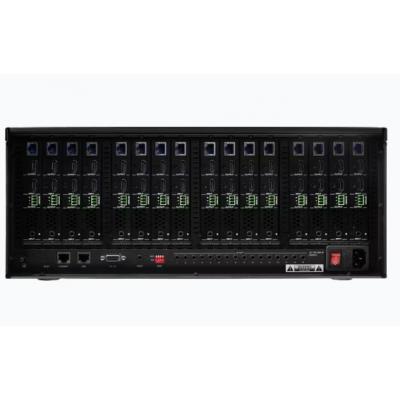

Atlona Technologies AT-HDR-MX1616

HDR 16X16 HDBaseT Matrix Switcher

The AT-HDR-MX1616 is a high-capacity 16×16 matrix switcher designed for premium AV installations. It supports HDMI input and output routing across 16 sources and 16 displays, delivering full 4K/UHD at 60 Hz with 4:4:4 chroma, HDR10/HLG and Dolby Vision formats, and HDCP 2.2 compliance. With integral HDBaseT distribution (up to 100 m), audio de-embedding, RS-232/IR/IP control, and professional-grade scalability, it’s engineered for large-scale spaces like enterprise boardrooms, broadcast facilities, or campus deployments where high-performance routing and flexibility are essential.

With 16 HDMI inputs and 16 HDBaseT outputs the Atlona AT-HDR-MX1616 matrix switcher is perfect for education, commercial, and hospitality applications where centralized inputs need to be routed to multiple projectors or displays installed throughout the environment. HDBaseT outputs support transmission of video, audio, Ethernet, control signals, and power up to 330 feet (100 meters). The built-in audio matrix routes de-embedded audio sources to analog outputs for integration with multi-zone audio distribution systems.

Features:
• Matrix switcher with 16 HDMI® inputs and 16 HDBaseT™ outputs
• Mirrored HDMI output for each HDBaseT output
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
• HDBaseT outputs extend AV, Ethernet, control signals, and power up to 330 feet (100 meters)
• Audio matrix routes de-embedded audio sources to unbalanced stereo analog outputs
• Remotely powers compatible receivers over HDBaseT

EAN # : 0846352008949
