Atlona Technologies AT-LC-MDP2H-2M

Atlona AT-LC-MDP2H-2M

Key Product Features
• Mini DisplayPort to HDMI® cables.
• Available in 1, 2, and 3 meter lengths.

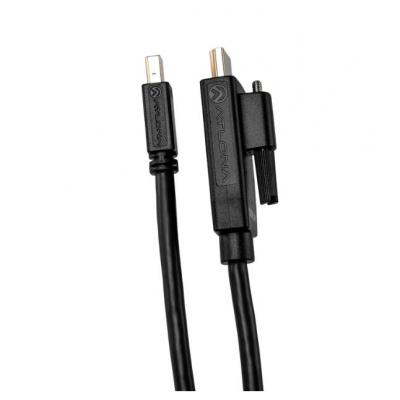

• Locking HDMI connector.
• Ideal for the Pocket™ 3H (AT-PKT-3H) tabletop enclosure and Atlona switchers.

Product Overview
Atlona LinkConnect™ MDP2H High Speed Mini DisplayPort to HDMI cables provide reliable, consistent AV performance. The LinkConnect family of cables includes a comprehensive range of options for connector type, length, and budget, so it’s easy to customize to fit any application.

Designed to work with the Pocket 3H (AT-PKT-3H) tabletop cable access enclosure and an Atlona switcher installed below the table, LinkConnect MDP2H cables offer you the right length to minimize excess cable. This combination helps ensure a clean, uncluttered meeting space minimizing in-room cable issues.

Mini DisplayPort to HDMI Cables
• High performance copper cable construction.
• Engineered for dependable, point-to-point connectivity in commercial and residential installations.

Available in 1, 2, and 3 Meter (3.3, 6.6, and 9.8 Feet) Lengths
• Get the cable length you need for your specific installation.
• Provide an uncluttered, tangle-free meeting room or workspace.

Locking HDMI Connector
• Ensure a secure cable connection to compatible Atlona equipment.
• Eliminate errors due to improperly connected cables.

Lifetime Limited Product Warranty
• Ensures long-term product reliability and performance.
• Specify, purchase, and install with confidence.

Product Specification
Video
• HDMI: 2.0.
• DisplayPort: 1.2a.
• HDCP: 1.4 and up to 2.3.
• Video: Video: up to 4Kx2K@60Hz 4:4:4, VESA: up to 2560×2048.
• Audio: Passes through up to Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™, Dolby Atmos®, DTS:X®.
• Bandwidth: 21.6 Gbps.
• Length: 1 m (3.3 ft), 2 m (6.6 ft), 3 m (9.8 ft).
• Shielding: Triple Shielded.
• Cable Diameter: 1 & 2 meter lengths: 5.5 mm (0.22 in); 3 meter length: 6 mm (.24 in).
• Jacket Material: PVC VW-1.
• Conductor: 1 & 2 meter lengths: 32 AWG; 3 meter length: 30 AWG.
• Connector: Gold-plated.
• Screw: M3*0.5mm.
• Bend Radius: 100 mm.
• Fire Rating: CL2.

EAN # : 8716065408959
