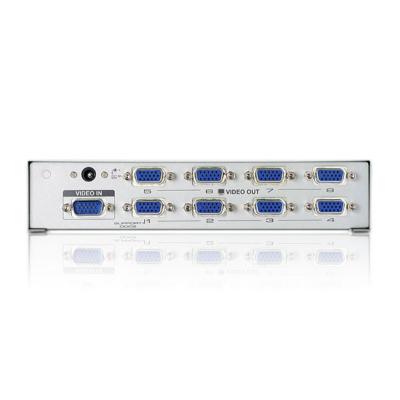

ATEN VS98A-AT-E

Aten VS98A-AT-E

Product Key Features
• One video input to 8 video outputs.
• Superior video quality - 1920 x 1440@60Hz.
• Supports 350 MHz bandwidth.
• Cascadable to 3 levels - provides up to 512 video signals.

Product Overview
The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Product Package Contents
• 1x 8-Port Video Splitter.
• 1x Power Adapter.
• 1x User Instructions.

More Product Key Features
• One video input to 8 video outputs.
• Cascadable to 3 levels - provides up to 512 video signals.
• Supports 350 MHz bandwidth.
• Long-distance transmission - up to 30 m *.
• Superior video quality - 1920 x 1440@60Hz.
• DDC, DDC2, DDC2B Compatible (Port 1 only).
• Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors.
• All metal casing.

Product Specifications
Video Input
• Interfaces: 1 x HDB-15 Male (Blue).
• Impedance: 75 Ώ.
• Max. Distance: 1.8 m.

Video Output
• Interfaces: 8 x HDB-15 Female (Blue).
• Impedance: 75 Ώ.

Video
• Max. Bandwidth: 350 MHz.
• Max. Resolution: Up to 1920 x 1440.
• Max. Distance: Up to 30 m.

Connectors
• Power: 1 x DC Jack.

Environmental
• Operating Temperature: 0 - 50°C.
• Storage Temperature: -20 - 60°C.
• Humidity: 0 - 80% RH, Non-Condensing.

Power Consumption
• DC9V:5W:23BTU

Physical Properties
• Housing: Metal.
• Weight: 0.69 kg (1.52 lb).
• Dimensions (L x W x H): 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.).

Carton Lot
• 20 pcs.

Note
• For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

EAN # : 4710423770836
