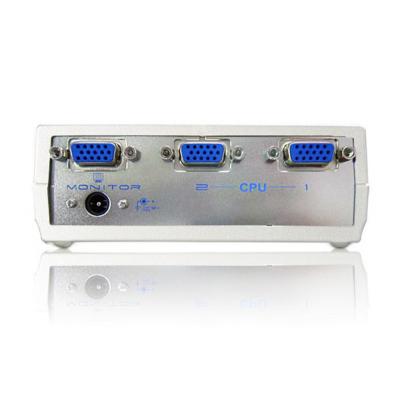

ATEN VS291-AT-E

Aten VS291-AT-E

Product Key Features
• Displays the video output of two computers on a single monitor or projector.
• High resolution video - up to 1920 x 1440.
• Long distance transmission - up to 10m
• DDC, DDC2, DDC2B Compatible.
• Computer selection via pushbutton switch.
• Electronic switching for greater reliability and durability.
• Easy Installation - No Software Required.
• Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
• OS Support: Windows 2000, Windows XP, Linux, Mac and Sun.

Product Overview
The VS291 is a video switch with 2 ports. It allows 2 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.

Product Package Contents
• 1x 2-Port Video Switch.
• 1x Power Adapter.

Product Specification
Video Input
• Interfaces: 2 x HDB-15 Female (Blue).
• Impedance 75 Ώ.
• Max. Distance: 1.8 m.

Video Output
• Interfaces: 1 x HDB-15 Female (Blue).
• Impedance: 75 Ώ.
• Max. Distance: 10 m.

Video
• Max. Bandwidth: 150 MHz.
• Max. Resolution: Up to 1920 x 1440.
• Max. Distance: Up to 10 m.

Connectors
• Power: 1 x DC Jack.

Power Consumption
• DC9V:0.82W:4BTU.

Environmental
• Operating Temperature: 0 - 50°C.
• Storage Temperature: -20 - 60°C.
• Humidity: 0 - 80% RH, Non-Condensing.

Physical Properties
• Housing: Plastic / Metal.
• Weight: 0.15 kg ( 0.33 lb ).
• Dimensions (L x W x H): 12.00 x 6.52 x 4.40 cm, (4.72 x 2.57 x 1.73 in.).

Carton Lot
• 20 pcs.

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

EAN # : 4710423771628
