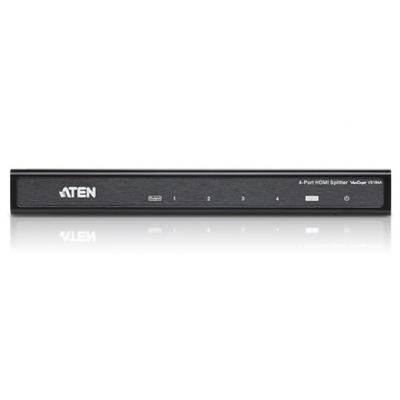

ATEN VS184A-AT-E

Aten VS184A-AT-E

Product Key Features
• Connects one HDMI source to four HDMI displays at the same time.
• HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant.
• Supports up to 340MHz bandwidth for high performance video.
• Long distance transmission – up to 15 m (24 AWG).
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD.
• Supports Dolby True HD and DTS HD Master Audio.
• Plug-and-play – no software installation required.

Note: Long distance transmission up to 20m (with ATEN 2L-7D20H).

Product Overview
The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Package Contents
• 1x VS184A 4-Port HDMI Splitter.
• 1x Power Adapter.
• 1x HDMI Cable.
• 1x User Instructions.

Product Specification
Video Input
• Interfaces: 1 x HDMI Type A Female (Black).
• Impedance: 100 Ώ.
• Max. Distance: 1.8 m.

Video Output
• Interfaces: 4 x HDMI Type A Female (Black).
• Impedance: 100 Ώ.

Video
• Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane).
• Max. Pixel Clock: 340 MHz.
• Compliance: HDMI (3D, Deep Color, 4K); HDCP Compatible.
• Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4).
• Max. Distance: Up to 15 m.

Audio
• Input: 1 x HDMI Type A Female (Black).
• Output: 4 x HDMI Type A Female (Black).

Connectors
• Power 1 x DC Jack

Power Consumption
• DC5.3V:6.02W:28BTU

Environmental
• Operating Temperature: 0-50 °C.
• Storage Temperature: -20 - 60°C.
• Humidity: 0 - 80% RH, Non-Condensing.

Physical Properties
• Housing: Metal
• Weight: 0.47 kg ( 1.04 lb )
• Dimensions (L x W x H): 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)

Carton Lot
20 pcs

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

EAN # : 4710423779938
