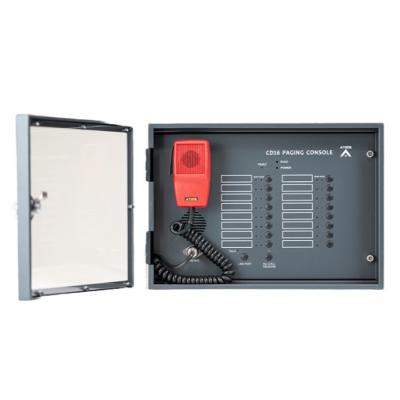

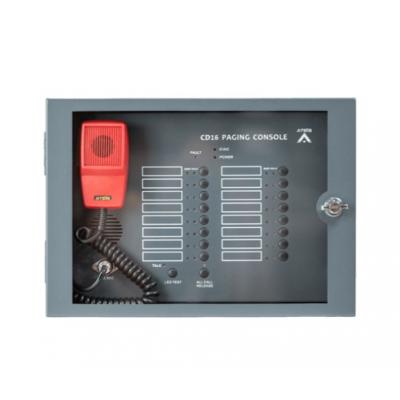

Ateis CD16-AS
|
Qty. | Login to see stock. | Login to buy |
Wall-mount heavy duty remote paging console with Access level 2 protection to comply with the EN 54-16. Compatible with DIVA8 System and communicates over a dedicated RS485 for Power, audio and DATA.
• 1 pcs Secured on Controller or Slave unit. 2nd and more on Controller or Slave unit are not secured.
• Max. 32 in a system and 10 in Master-Slave string.
Specifications
• Power supply
- DC/battery power requirements
- Voltage:18 - 26 VDC
- Power consumption:120 mA
• Performance
- Frequency response:-3 dB @ 200 to 8kHz
- THD:< 1% @ 1 kHz
- Output level Max:6 dBu
- Noise gate threshold:-84 dBu – 24 dBu
- Attack time:8 ms
- Release time:100 ms
- Output impedance:100 Ohms
• Monitoring speaker
- Impedance:4 Ohm
- Output power:1 W @ 1 Khz
- Frequency response:-3 dB @ 200 to 12 kHz
• Dimensions(H x W x D)
- CD16:- 130 x 350 x 130 mm
• Weight
- CD16:- 4.7 kg
