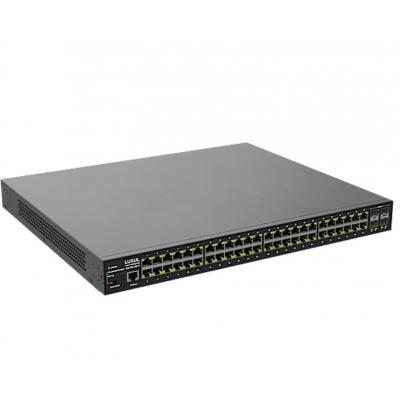

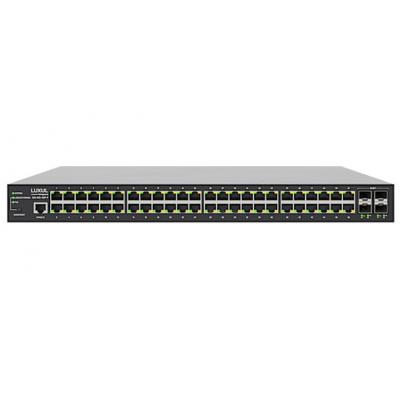

Luxul SW-515-48P-F-E

54-Port Front Facing Gigabit (48 PoE+) L2/3 Managed Switch with 4x SFP

The SW-515-48P-F includes 48 1-Gigabit PoE+ Ethernet ports and four 1-Gigabit SFP expansion ports. Two or more SFP ports can be aggregated for a connection speed of up to 4 Gb. The 48 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 740W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in multi-switch AV-over-IP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.

Features:
• Refreshed, simplified user interface
• Supports inbound and outbound (ingress and egress) ACL filtering
• Layer 2/Layer 3 capabilities (static routing included)
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 104Gbps switching capacity
• 802.1Q VLAN and QoS support including DCSP
• Dante and AES67 compatibility
• AV-over-IP compatible
• PoE Monitoring: auto-recovery and power scheduling
• 740W total PoE budget
• Standard 19-inch rack mount
• 2 All Ethernet RJ-45 ports are PoE+ powered (IEEE 802.3at)
• Dynamic PoE allocation
• Front-facing ports
• Low noise, variable speed fans
• AV templates for easier, faster deployment and network control available with firmware update 1.00.429
• Three Year Limited Warranty
