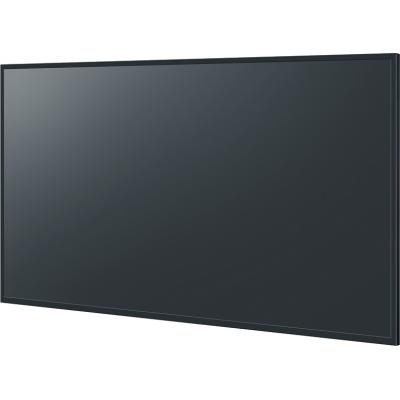

Panasonic 43" TH-43EQ2W Commercial Display

43", Black, Large Format Display, 4K, 500cd/m2, 18/7

With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, the EQ2 Series is ideal for conference rooms, classrooms and open spaces such as receptions and shopping malls. The ability to position the display in portrait or landscape mode, with up to a 20-degree tilt angle and 18 hours continuous operation also makes the Series perfect for information display.

The EQ2 Series supports the Intel® SDM (Smart Display Module) specification slot, which can be used with the receiver board version of Panasonic's wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK. Equipped with HDMI (x 3), PC and USB Type-C video input terminals, it can connect external devices according to the usage environment.

Features a built-in whiteboard function to annotate the display screen and zoom in and out using a mouse. USB devices can be connected to the display via a USB Type-A cable and controlled using a PC connected to the EQ2 via the USB Type-C port. This functionality, for example, is ideal for a simple and quick start to video conferences. If a camera or speakerphone is permanently connected to the display in a conference room, a user can just plug in their PC and immediately control all devices to start the meeting.

With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.

The EQ2 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.

Adopts Anti-glare treatment panel (Haze 25%) to suppress the reflected glare of bright light, it is ideal for conference rooms and classrooms.

Available in 43 to 86-inch models to suit your space, ranging from small corners such as a huddle room to the main display in a conference room. It can be installed horizontally or vertically, allowing you to choose the installation orientation according to the content. It also supports installation with a forward/backward tilt of up to 20 degrees, so it can be wall-mounted or tilted to a comfortable viewing angle.


The EQ2 Series is equipped with the new Intel® SDM specification slot standard that supports 4K signals. It can be used with the receiver board version of Panasonic's wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK.

4K display, data transfer and charging of connected devices (up to 60W) can be simultaneously conducted over a single cable with the USB Type-C port.
External devices can be connected and various contents can be displayed according to the usage environment with the HDMI (x3) video input terminals.

The EQ2 Series can be controlled by LAN or RS-232C. You can configure the display into your existing control system, and can control several devices simultaneously. It also supports AMX or Crestron Connected™ LAN control.
